Xtra Grip Conveyor Belt

Xtra-Grip ™ conveyor belting provides increased material transfer inclines of five degrees or more due to its 1/4" high Chevron ribbed pattern versus conventional smooth belting

See the difference with the Xtra Grip Conveyor Belt

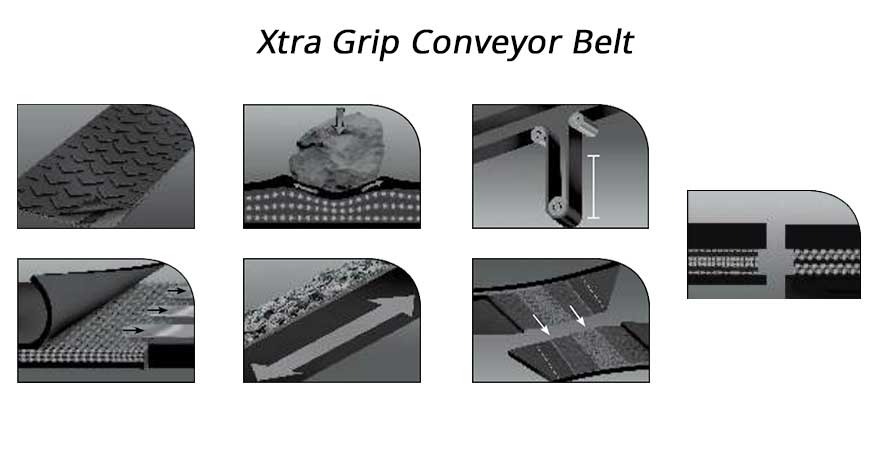

Load gripping rib pattern The ribs of Xtra-Grip belting are 1/4" high chevrons that increase the permissible angle of incline by 5 degrees or more. Xtra-Grip works especially well with materials that have a high water content where slipping of the load on the belt might otherwise occur. The staggered Chevron design, molded into the top cover, can be run in either direction. Excellent fastener holding retention High strength fill cords enhance mechanical fastener holding ability and resist fastener pull-out for more reliable performance and increased uptime. Excellent rip, tear and impact resistance Specially designed crimped warp cords straighten on impact and then recover their original shape. This enables the fabric to absorb greater impact loads and resist tearing for long-lasting durability and a lower cost-per-ton conveyed. High ultimate strength Xtra-Grip belts withstand severe tension spikes at start-up, retain mechanical fasteners and withstand continuous flexing around pulleys. This higher ultimate strength makes a critical difference in abusive operating conditions. Reduced stretch The combination of fabric design and dip process provides lower elasticity and permanent elongation on all specifications. This minimizes take-up concerns and reduces the number of splices at break-in. Contact your local GTM to calculate permanent and elastic elongation requirements for your specific systems. Standard bias step splices A quick and effective technique, step splices greatly reduce downtime and are recognized throughout the industry as the standard. The vulcanized splice in Xtra-Grip retains 100% of belt tension rating during running conditions. Variety of cover compounds Protect your product with the proper compound and cover gauge for the application. Xtra-Grip conveyor belting can be customized to fit your application

Call us Now 866-711-4673 Request A Quote

Xtra-Grip
™
conveyor belting provides increased material
transfer inclines of five degrees or more due to its 1/4" high Chevron ribbed pattern versus
conventional smooth belting.
Markets
Applications
Cover Compounds

cost-per-ton conveyed.
•
Aggregate
•
Baggage Handling
•
Bulk Handling
Terminal
•
Cement
•
Coal
•
Foundry
•
Grain
•
Hard Rock
•
Package Handling
•
Pulp and Paper
•
Sand and Gravel
•
Steel Production
•
Wood Products
•
Bark Belts
•
Grain Storage
•
Grain Transfer
•
Ship Unloaders
•
Stacker Conveyors
•
Trash and
Recycling Plants
•
Wood Chips
• 6740
A
•
ARMA
®
-
SBR
•
Defender
®
•
HT Nitrile
•
MORS
•
Stacker
®

Tension Range
220
PIW to 375 PIW

Features & Benefits
Load gripping rib pattern The ribs of Xtra-Grip belting are 1/4" high chevrons that increase the permissible angle of incline by 5 degrees or more. Xtra-Grip works especially well with materials that have a high water content where slipping
																of the load on the belt might otherwise occur. The staggered Chevron design, molded into the top cover, can be run in either direction. Excellent fastener holding retention High strength fill cords enhance mechanical fastener holding ability and resist
																fastener pull-out for more reliable performance and increased uptime. Excellent rip, tear and impact resistance Specially designed crimped warp cords straighten on impact and then recover their original shape. This enables the fabric to absorb greater impact loads and resist tearing for long-lasting durability and a lower cost-per-ton conveyed. High ultimate strength
																Xtra-Grip belts withstand severe tension spikes at start-up, retain mechanical fasteners and withstand continuous flexing around pulleys. This higher ultimate strength makes a critical difference in abusive operating conditions. Reduced stretch
																The combination of fabric design and dip process provides lower elasticity and permanent elongation on all specifications. This minimizes take-up concerns and reduces the number of splices at break-in. Contact your local GTM to calculate permanent and elastic elongation requirements for your specific systems. Standard bias step splices A quick and effective technique, step splices greatly reduce downtime and are recognized throughout the industry as the standard. The vulcanized splice in
																Xtra-Grip retains 100% of belt tension rating during running conditions. Variety of cover compounds
																Protect your product with the proper compound and cover gauge for the application. Xtra-Grip conveyor belting can be customized to fit your application.

XTRA-GRIP CONVEYOR BELT DATA - Imperial
XTRA-GRIP rated belt tension can exceed 100%, with a maximum of 150%, during starting and stopping conditions. Fastener size recommendation may vary due to cover thickness,
pulley diameters and system tension. Consult your GTM or fastener manufacturer.
*
P/P = Poly/Poly P/N = Poly/Nylon
**
Average Permanent elongation values at 100% of rated belt tension are based on ISO 9856 test procedure. Consult your GTM or GAD for elastic & total elongation calculations.
XTRA-GRIP LOAD SUPPORT (Maximum Belt Width) (in.)
On systems with troughing idler spacing greater than 5 ft. OR idler roll gap greater than 1/2", consult your GTM.
XTRA-GRIP TROUGHABILITY (Minimum Belt Width) (in.) (Table based on ISO 703 Testing Procedure)
XTRA-GRIP MINIMUM PULLEY DIAMETERS (in.)
PIW/Plies
Material Weight
0-40
lbs/cu.ft.
41-80
lbs/cu.ft.
81-120
lbs/cu.ft.
81-120
lbs/cu.ft.
Trough Idlers
20
deg 35 deg 45 deg 20 deg 35 deg
45
deg 20 deg 35 deg
45
deg
20
deg
35
deg
45
deg
220/2
48
42
36
48
36
36
42
36
30
36
30
NR
250/2
54
48
48
48
42
36
42
42
30
36
30
NR
330/3
60
54
48
60
48
42
54
48
42
48
42
36
375/3
72
60
60
60
60
48
54
54
48
48
42
36
X T R A - G R I
P
™
If top cover and pulley cover are balanced (ie. 3/16"x3/16") or less than 1/16" differential (ie. 3/16"x5/32"), add 6" to the minimum belt width.
6"
narrower widths are possible if the belt is broken in for an extended period of time fully loaded. Consult your GTM.
Additional break in time is required when the belt has been stored prior to insulation in ambient temperatures of less than 50 degrees Fahrenheit
Above tables are based on top cover gauge equal or greater than the bottom (pulley) cover gauge.
XTRA-GRIP XTRA-GRIP XTRA-GRIP XTRA-GRIP
220/2
250/2
330/3
375/3
Number of Plies
2
2
3
3
Vulcanized & Fastener Rating (piw)
220
250
330
375
Fabric Type*
P/P
P/N
P/P
P/N
Carcass Gauge (in.)
0.120
0.129
0.162
0.169
Carcass Weight (lbs/sq.ft.)
0.72
0.76
0.98
1.01
Approx 1/32" cover wt (lbs/sq.ft.)
0.19
0.19
0.19
0.19
Avg. Permanent Elongation (%) **
0.8
0.8
0.8
0.8
Elastic modulus (piw)
23,000
30,000
34,500
45,000
Step Length (in.)
10
10
10
10
Recommended Plate Fastener
140
190
190
BR-10
Hinge
R2
R2
R2
R5
Hinge
U35A
U35A
U35A
U35
XTRA-GRIP XTRA-GRIP XTRA-GRIP XTRA-GRIP
Idlers
220/2
250/2
330/3
375/3
20
degree idlers
18
18
18
20
35
degree idlers
18
18
24
24
45
degree idlers
24
24
30
30
XTRA-GRIP XTRA-GRIP XTRA-GRIP XTRA-GRIP
Specifications
220/2
250/2
330/3
375/3
Over 80% Tension
16
16
18
18
60%
to 80% Tension
14
14
16
16
40%
to 60% Tension
10
12
12
14
Up to 40% Tension
10
12
12
14
Tails and Snubs
10
12
12
14

XTRA-GRIP CONVEYOR BELT DATA - Metric
XTRA-GRIP rated belt tension can exceed 100%, with a maximum of 150%, during starting and stopping conditions. Fastener size recommendation may vary due to cover thickness,
pulley diameters and system tension. Consult your GTM or fastener manufacturer.
*
P/P = Poly/Poly P/N = Poly/Nylon
**
Average Permanent elongation values at 100% of rated belt tension are based on ISO 9856 test procedure. Consult your GTM or GAD for elastic & total elongation calculations.
XTRA-GRIP LOAD SUPPORT (Maximum Belt Width) (mm)
On systems with troughing idler spacing greater than 1.5 m OR idler roll gap greater than 12.7mm, consult your GTM.
XTRA-GRIP TROUGHABILITY (Minimum Belt Width) (mm) (Table based on ISO 703 Testing Procedure)
XTRA-GRIP MINIMUM PULLEY DIAMETERS (mm)
PIW/Plies
Material Weight
0-40
lbs/cu.ft.
41-80
lbs/cu.ft.
81-120
lbs/cu.ft.
81-120
lbs/cu.ft.
Trough Idlers
20
deg 35 deg 45 deg 20 deg 35 deg
45
deg 20 deg 35 deg
45
deg
20
deg
35
deg
45
deg
220/2
1200
1050
900
1200
900
900
1050
900
750
900
750
NR
250/2
1400
1200 1200
1200
1050
900
1050
1050
750
900
750
NR
330/3
1550
1400
1200
1500
1200
1050
1400
1200
1050
1200
1050
900
375/3
1850
1550
1550
1550
1550
1200
1400
1400
1200
1200
1050
900
X T R A - G R I
P
™
If top cover and pulley cover are balanced (ie. 5mm x 5mm) or less than 2 mm differential (ie. 4mm x 3mm), add 150 mm to the minimum belt width.
150
mm narrower widths are possible if the belt is broken in for an extended period of time fully loaded. Consult your GTM.
Additional break in time is required when the belt has been stored prior to insulation in ambient temperatures of less than 10 degrees Centigrade.
Above tables are based on top cover gauge equal or greater than the bottom (pulley) cover gauge
XTRA-GRIP XTRA-GRIP XTRA-GRIP XTRA-GRIP
220/2
250/2
330/3
375/3
Number of Plies
2
2
3
3
Fabric Type*
P/P
P/N
P/P
P/N
Vulcanized & Fastener Rating (kN/m)
39
44
58
66
Carcass Gauge (mm)
3.0
3.3
4.1
4.3
Carcass Weight (kg/sq.m)
3.5
3.7
4.8
4.9
Approx 1 mm cover wt (kg/sq.m)
1.2
1.2
1.2
1.2
Avg. Permanent Elongation (%) **
0.8
0.8
0.8
0.8
Elastic modulus (kN/m)
4,030
5,250
6,040
7,880
Step Length (mm)
250
250
250
250
Recommended Plate Fastener
140
190
190
BR-10
Hinge
R2
R5
R2
R5
Hinge
U35A
U35A
U35A
U35
XTRA-GRIP XTRA-GRIP XTRA-GRIP XTRA-GRIP
Idlers
220/2
250/2
330/3
375/3
20
degree idlers
450
450
450
500
35
degree idlers
450
450
600
600
45
degree idlers
600
600
750
750
XTRA-GRIP XTRA-GRIP XTRA-GRIP XTRA-GRIP
Specifications
220/2
250/2
330/3
375/3
Over 80% Tension
400
400
400
450
60%
to 80% Tension
350
350
350
400
40%
to 60% Tension
300
300
300
350
Up to 40% Tension
250
300
250
350
Tails and Snubs
250
300
250
350
