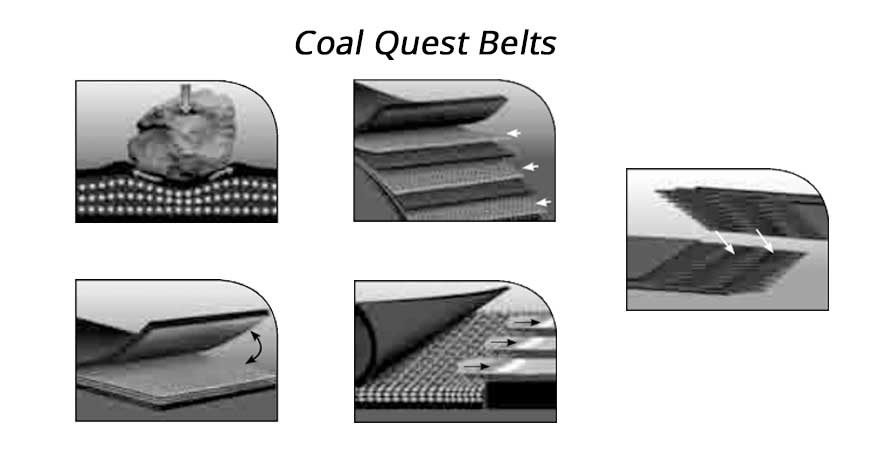

Coal Quest Conveyor Belt

Coal Quest belts provides superior mechanical fastener holding strength, unbeatable vulcanized splice capabilities, a high degree of flexibility, and great impact, tear and rip resistance

See the difference with the Coal Quest Conveyor Belt

Flame Resistance Underground coal belts require additional flame resistance and flame propagation cover properties. Our SHIELD ™ compound exceeds MSHA’s part 14, B.E.L.T. flame resistance and flame propagation requirements while also providing low smoke toxicity and density safety characteristics as well as outstanding abrasion resistance. We also offer standard ARMA compound for ASTM D378 Part 13.2 flame resistance and ARMA II where superior abrasion resistance is required. See the compounds section on page 82 for available compounds. Impact Resistance Goodyear Engineered Products underground belts come well prepared to withstand the worst. That’s because loading impact damage, a major cause of belt failure, is already assessed and predicted at our Technical Center laboratory. During the design phase, our design engineers utilize an enhanced Dynamic Impact Tester to accurately simulate loading impact force and its effects on belting. It is information like this that contributed to the design of our Triple-Warp™ fabric weave. Tear Resistance A misaligned belt can suffer edge tears by running into the structure. Tears can also occur as a result of material punctures. Thanks to the extremely high transverse tear strength of Coal Quest belts, these occurrences are minimized and contained. Rip Resistance Scrap metal and other debris can penetrate and greatly damage a belt. If these foreign objects get hung up in the structure, it can lead to equipment damage, material spillage and even slits or cuts in long sections of the belt. The Triple-Warp fabric design of Coal Quest belting helps dislodge and expel foreign objects and contain rips to a small area. Fastener Retention The mechanical fastener splices of Coal Quest belts are rated at 100% of the rated working tension. At our world-class Technical Center, these splices have undergone rigorous dynamic and static testing, which enables the belt to offer superior mechanical fastener retention vs. multi-ply and straight-warp constructions. Vulcanized Finger Splice A finger over finger vulcanized splice is recommended for Goodyear Engineered Products Coal Quest belting. This splice method takes advantage of the supior strength properties of the Coal Quest carcass to offer 100% of the rated belt tension

Call us Now 866-711-4673 Request A Quote

COAL QUEST
®
Coal Quest
Our long history of innovation continues with the
development of our exclusive,
patented
,
polyester x nylon
Goodyear Engineered Products Triple-Warp™ fabric
weave. It’s what makes Coal Quest your best choice in
severe applications such as panel, mainline, tripper or
slope belts.
Coal Quest belt is available in 1-ply 400,
1-
ply 600, 3-ply 600, 3-ply 800, and 3-ply 1,000 PIW
configurations. The design of Coal Quest features a
Triple-Warp fabric center ply surrounded by a pair of
abuse-resistant and flexible outer plies. Coal Quest belts
make for a construction that provides a wide range of
benefits — superior mechanical fastener holding strength,
unbeatable vulcanized splice capabilities, a high degree of
flexibility, and great impact, tear and rip resistance.
ABUSE-RESISTANT OUTER PLIES
Coal Quest constructions feature two
rugged plies to provide further belt
strength and added flexibility.
TOP & BOTTOM COVERS
The versatility to reduce the
bottom cover gauge means lowering
your overall belt cost without sacrificing
performance,andareductioninbeltweight,
which reduces system energy consumption.
Unlike the heavier bottom covers required by
straight-warp belts, Coal Quest customers can
stipulate the exact cover gauge their belts require,
both top and bottom.
TRIPLE-WARP
TM
CENTER PLY
Three independent warp cords in combination with nylon fill cords, join together to increase overall ply integrity in
the patented Triple-Warp construction of Coal Quest belting. The combination of high strength crimped surface and
straight-warp cords helps fend off rips, tears, punctures and other abusive elements. This provides an even greater
measure of belt strength vs. traditional straight-warp and multi-ply fabric weaves. Typical straight-warp designs
offer only small binder yarns to maintain the integrity of the weave which may result in edge stringing.
Designed for down-under durability
Fill Cord
Straight-Warp Cord
Binder Cord
Surface-Warp Cord
CROSS SECTIONAL VIEW
THREE DIMENSIONAL VIEW
Patent-Pending
Tension Range
400
PIW to 1000 PIW

Impact Resistance
Goodyear Engineered Products underground belts come well prepared to withstand the
worst. That’s because loading impact damage, a major cause of belt failure, is already
assessed and predicted at our Technical Center laboratory. During the design phase, our
design engineers utilize an enhanced Dynamic Impact Tester to accurately simulate
loading impact force and its effects on belting. It is information like this that contributed
to the design of our Triple-Warp™ fabric weave.
Flame Resistance
Underground coal belts require additional flame resistance and flame propagation cover
properties. Our SHIELD
™
compound exceeds MSHA’s part 14, B.E.L.T. flame resistance
and flame propagation requirements while also providing low smoke toxicity and density
safety characteristics as well as outstanding abrasion resistance. We also offer standard
ARMA compound for ASTM D378 Part 13.2 flame resistance and ARMA II
where superior abrasion resistance is required. See the compounds section on page
82
for available compounds.
Tear Resistance
A misaligned belt can suffer edge tears by running into the structure. Tears can also occur as
a result of material punctures. Thanks to the extremely high transverse tear strength of
Coal Quest belts, these occurrences are minimized and contained.
Rip Resistance
Scrap metal and other debris can penetrate and greatly damage a belt. If these foreign objects
get hung up in the structure, it can lead to equipment damage, material spillage and even
slits or cuts in long sections of the belt. The Triple-Warp fabric design of Coal Quest belting
helps dislodge and expel foreign objects and contain rips to a small area.
Fastener Retention
The mechanical fastener splices of Coal Quest belts are rated at 100% of the rated working
tension. At our world-class Technical Center, these splices have undergone rigorous dynamic
and static testing, which enables the belt to offer superior mechanical fastener retention vs.
multi-ply and straight-warp constructions.
Vulcanized Finger Splice
A finger over finger vulcanized splice is recommended for Goodyear Engineered Products
Coal Quest belting. This splice method takes advantage of the supior strength properties of
the Coal Quest carcass to offer 100% of the rated belt tension.
C O A L
Q U E S T
®
Features & Benefits
COAL QUEST
Resists fastener pullout
Excellent
Good
Handles severe impact
Excellent
Excellent
Transverse tear resistance
Excellent
Excellent
Rip resistance
Excellent
Excellent
Flexibility around small pulley diameters
Excellent
Poor
Option to utilize various cover gauges
Excellent
Poor
Resists edge fraying or stringing
Excellent
Poor
Minimum cost and time for vulcanized splice
Good
Poor
F E A T U R E S
Coal Quest
Straight-Warp
6-
Pulley Dynamic Splice Fatigue Tester

C O A L
Q U E S T
®
On In-Line systems with troughing idler spacing greater than 5 ft. or idler roll gap greater than 1/2". Consult your GTM.
COAL QUEST LOAD SUPPORT (Maximum Belt Width) (in.)
COAL QUEST CONVEYOR BELT DATA - Imperial
COAL QUEST TROUGHABILITY (Minimum Belt Width) (in.) (Table based on ISO 703 Testing Procedure)
COAL QUEST MINIMUM PULLEY DIAMETERS (in.)
Coal Quest
Coal Quest
Coal Quest
Coal Quest
Coal Quest
400/1
600/1
600/3
800/3
1000/3
Number Of Plies
1
1
3
3
3
Fabric Type
P/N
P/N
P/N
P/N
P/N
Vulcanized & Fastener Rating (piw)
400
600
600
800
1000
Carcass Gauge (in.)
0.136
0.168
0.274
0.323
0.356
Carcass Weight (lbs/sq.ft.)
0.80
1.02
1.74
1.95
2.19
Approx. 1/32" cover wt (lbs/sq.ft.)
0.24
0.24
0.24
0.24
0.24
Avg. Permanent Elongation (%) *
1.20
1.30
1.00
1.40
1.90
Elastic modulus (piw)
30,000
44,000
55,500
60,500
72,000
Splice Step Length (in.)
Finger
Finger
Finger
Finger
Finger
Recommended Fasteners:
Hinge
R5
R5-1/2
R5-1/2
R6
R6
Hinge
U35
U35
U35
U36
U37
6"
narrower widths are possible if the belt is broken in for an extended period of time fully loaded. Consult your GTM.
Coal Quest
Coal Quest
Coal Quest
Coal Quest
Coal Quest
400/1
600/1
600/3
800/3
1000/3
Number Of Plies
1
1
3
3
3
20
degree idlers
18
24
30
30
30
35
degree idlers
24
30
36
36
36
45
degree idlers
24
30
42
42
42
Coal Quest
Coal Quest
Coal Quest
Coal Quest
Coal Quest
400/1
600/1
600/3
800/3
1000/3
Number Of Plies
1
1
3
3
3
Over 80% Tension
20
20
24
30
30
60%
to 80% Tension
18
18
20
24
24
40%
to 60% Tension
14
14
18
20
20
Up to 40% Tension
12
12
16
18
18
Tails and Snubs
12
12
16
18
18
Rated belt tension can exceed 100%, with a maximum of 150%, during starting and stopping conditions. Fastener size recommendation may vary due to cover
thickness, pulley diameters, and system tension.
Consult your GTM or fastener manufacturer. R6 fasteners must be installed with stainless steel rivets when belt tension exceeds 140kN/m for best results.
P/N = Poly / Nylon N/N = Nylon/Nylon
*
Average Permanent elongation values at 100% of rated belt tension are based on ISO 9856 test procedure. Consult your GTM or GAD for elastic & total
elongation calculations. Consult your GTM for vulcanized splice method for Coal Quest constructions.(Do not use any bias or overlap design).
Material Weight
0-65
lbs/cu.ft.
65-100
lbs/cu.ft.
Idler Angle
20
deg
35
deg
45
deg
20
deg
35
deg
45
deg
Coal Quest 400/1
54
48
42
54
48
42
Coal Quest 600/1
60
54
48
54
48
42
Coal Quest 600/3
72
60
54
60
54
48
Coal Quest 800/3
84
72
60
72
60
54
Coal Quest 1000/3
96
84
72
84
72
60
C O A L
Q U E S T
®
On In-Line systems with troughing idler spacing greater than 1.5m or idler roll gap greater than 12.7mm. Consult your GTM.
Material Weight
(0-640
kg/cu.m.)
(641-1,280
kg/cu.m.)
Idler Angle
20
deg
35
deg
45
deg
20
deg
35
deg
45
deg
Coal Quest 400/1
1372
1219
1067
1372
1219
1067
Coal Quest 600/1
1524
1372
1219
1372
1219
1067
Coal Quest 600/3
1829
1524
1372
1524
1372
1219
Coal Quest 800/3
2134
1829
1524
1829
1524
1372
Coal Quest 1000/3
2438
2134
1829
2134
1829
1524
COAL QUEST LOAD SUPPORT (Maximum Belt Width) (mm)
COAL QUEST CONVEYOR BELT DATA - Metric
COAL QUEST TROUGHABILITY (Minimum Belt Width) (mm) (Table based on ISO 703 Testing Procedure)
Coal Quest
Coal Quest
Coal Quest
Coal Quest
Coal Quest
400/1
600/1
600/3
800/3
1000/3
Number Of Plies
1
1
3
3
3
Fabric Type
P/N
P/N
P/N
P/N
P/N
Vulcanized &Fastener Rating (kN/m)
70
105
105
140
175
Carcass Gauge (mm)
3.45
4.27
6.96
8.20
9.04
Carcass Weight (kg/m2)
3.91
4.98
8.50
9.52
10.69
Approx 1mm cover wt (kg/m2)
1.17
1.17
1.17
1.17
1.17
Elastic modulus (kN/m)
5255
7720
9720
10598
12610
Avg. Permanent Elongation (%) *
1.2
1.3
1
1.4
1.9
Splice Step Length (mm)
Finger
Finger
Finger
Finger
Finger
Recommended Fasteners:
Hinge
R5
R6-1/2
R5-1/2
R6
R6
Hinge
U35
U35
U35
U36
U37
Coal Quest
Coal Quest
Coal Quest
Coal Quest
Coal Quest
400/1
600/1
600/3
800/3
1000/3
Number Of Plies
1
1
3
3
3
20
degree idlers
457
609
762
762
762
35
degree idlers
610
762
914
914
914
45
degree idlers
610
762
1067
1067
1067
Coal Quest
Coal Quest
Coal Quest
Coal Quest
Coal Quest
400/1
600/1
600/3
800/3
1000/3
Number Of Plies
1
1
3
3
3
Over 80% Tension
508
508
610
762
762
61%
to 80% Tension
457
457
508
610
610
40%
to 60% Tension
356
356
457
508
508
Up to 40% Tension
305
305
406
457
457
Tails and Snubs
305
305
406
457
457
Rated belt tension can exceed 100%, with a maximum of 150%, during starting and stopping conditions. Fastener size recommendation may vary due to cover
thickness, pulley diameters, and system tension.
Consult your GTM or fastener manufacturer. R6 fasteners must be installed with stainless steel rivets when belt tension exceeds 140kN/m for best results.
P/N = Poly / Nylon N/N = Nylon/Nylon
*
Average Permanent elongation values at 100% of rated belt tension are based on ISO 9856 test procedure. Consult your GTM or GAD for elastic & total
elongation calculations. Consult your GTM for vulcanized splice method for Coal Quest constructions. (Do not use any bias or overlap design).
COAL QUEST MINIMUM PULLEY DIAMETERS (mm.)
150
mm narrower widths are possible if the belt is broken in for an extended period of time fully loaded. Consult your GTM.
